Produktdetails

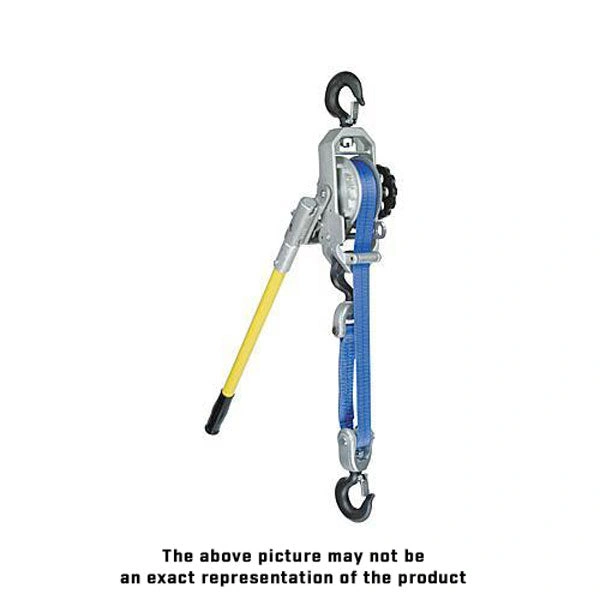

• Lightweight and rugged strap hoist puller
• Included Hot Stick Rings on all hooks and control surfaces
• Overload protection handle tip bends to warn of hazardous overload
• Handle tip replacement is easy and simple
• Enhanced reversing mechanism innovative design reduces the handle effort needed to release or lower a load
• Double interlocking PAWLS assures positive load holding in all environments
• Compact aluminum alloy frame features a double flanged strap drum and interrogated hook point for double line use
• All stainless steel springs and shafts are corrosion resistant
• All rotating shafts are mounted on bronze bushings for reduced wear
• 360° swiveling hooks can be equipped with a wide range of latch options
• Meets or exceeds minimum 4:1 design factor and all requirements of ASME/ANSI Standard B-30.21
• All units tested at 125% of rated load

*Usually ships in 7 to 14 days.

Product Specifications

• Single Line Capacity: 1500 and 2000 lbs
• Double Line Capacity: 3000 and 4000 lbs
• Lift: 14’ and 7’
• Hoist Model: 322
• Type: Strap
• Headroom: 20”
• Load Limiter Included: No
• Anchor Sling Installed: No
• Product Weight: 11.5 lbs
• Warranty: Lifetime
• Shipyard Hooks Incl.: No
• Load Sentry Included: No
• Metric Rated: No
• Reeving: 1 & 2
• Lever Length: 24”
