Wingman Kit – Dein zuverlässiger Freund in jeder Situation! Mit diesem Set bist du nie allein.
Entdecke die Geheimnisse des Unbekannten mit diesem mysteriösen Artefakt! Es flüstert Geschichten aus einer längst vergessenen Zeit, ein Hauch von Abenteuer, eingewoben in Seide und Schatten. Spüre die Magie, die in jeder Faser schlummert, und lass dich von seinen unergründlichen Kräften verzaubern. Ein Schatz, der darauf wartet, von dir entdeckt zu werden, ein Tor zu Welten, die du dir niemals vorstellen konntest. Greife zu, bevor es für immer in den Nebel verschwindet!
FR.212.63
FR.425.24
DESCRIPTION:
Harken’s new Wingman applies new design and technology to achieve more from a compact personal mechanical advantage system. Wingman’s innovative design makeIchanically within the unit rather than relying on prusiks to achieve that externally.

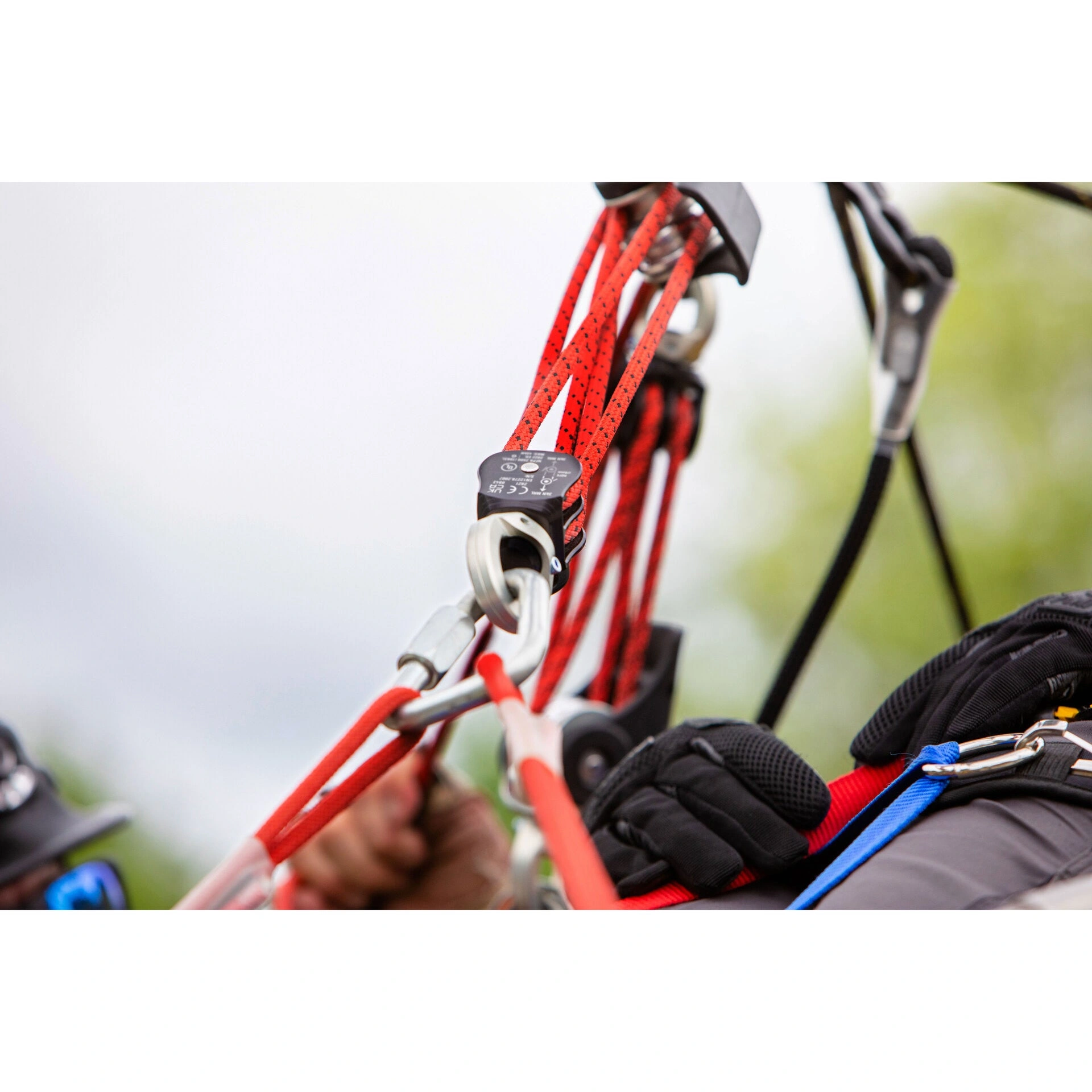

Wingman combines a ratcheting sheave to stop the rope with a composite handle or wing the operator can open and close under load for a well-modulated ‘fine-tuned’ release. Under full load even with the sheaves pulled completely together, the system may be released quite easily--with full control using one hand on the wing and the other tending the line.
The Wingman has a minimum overall length of just 8” which means more clearance under a tripod and more throw during a pick-off. The device is also ideal for creating adjustable directionals, work positioning and much more. It may be configured as a 4:1 or 5:1 mechanical advantage system. These revolutionary features plus ball bearings within the sheaves that maximize efficiency for raising and lowering loads of up to 681lbs, makes Wingman a simple tool you will always want at your side.

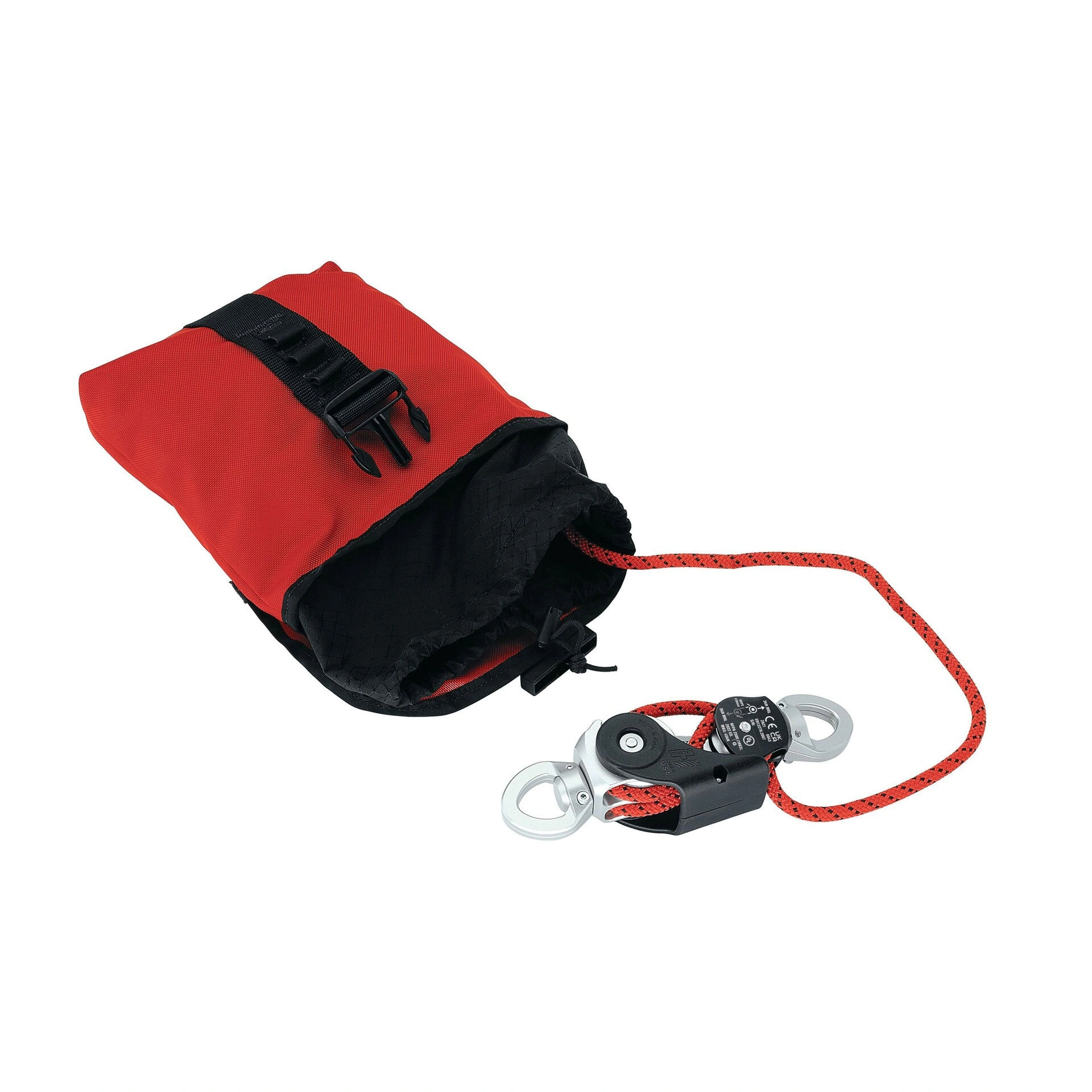

Comes in an industrial-grade ballistic nylon carrying case with locking buckle. Case includes drawstring and drain grommets to separate unit and line for proper deployment and line drying. MEETS THE MANUFACTURED SYSTEM REQUIREMENTS OF NFPA 1983, INCORPORATED IN THE 2022 EDITION OF NFPA 2500 The H-86666 double becket block portion of the WingMan is CE and UKCA certified. H-86666 Double pulley with side becket Certification: EN 12278.2007 This pulley is designed to be used in a system for preventing a fall from height. When required this product must be used with a comprehensive fall protection system in accordance with EN 363 and a fall arrest harness that meets EN361. Personal Protective Equipment Regulations (Regulation 2016/425) and the Personal Protective Equipment (Enforcement) Regulations 2018, as amended.
Available in: 50', 150', and 250' lengths
- Breaking load (kN) - 45 kN
- Breaking load (lb) - 10116 lb
- Maximum working load (lb) - 647 lb
- Maximum working load (kg) - 300 kg
- Slip Load (lb) - 900 lb
- Slip Load (kN )- 4 kN
